Description

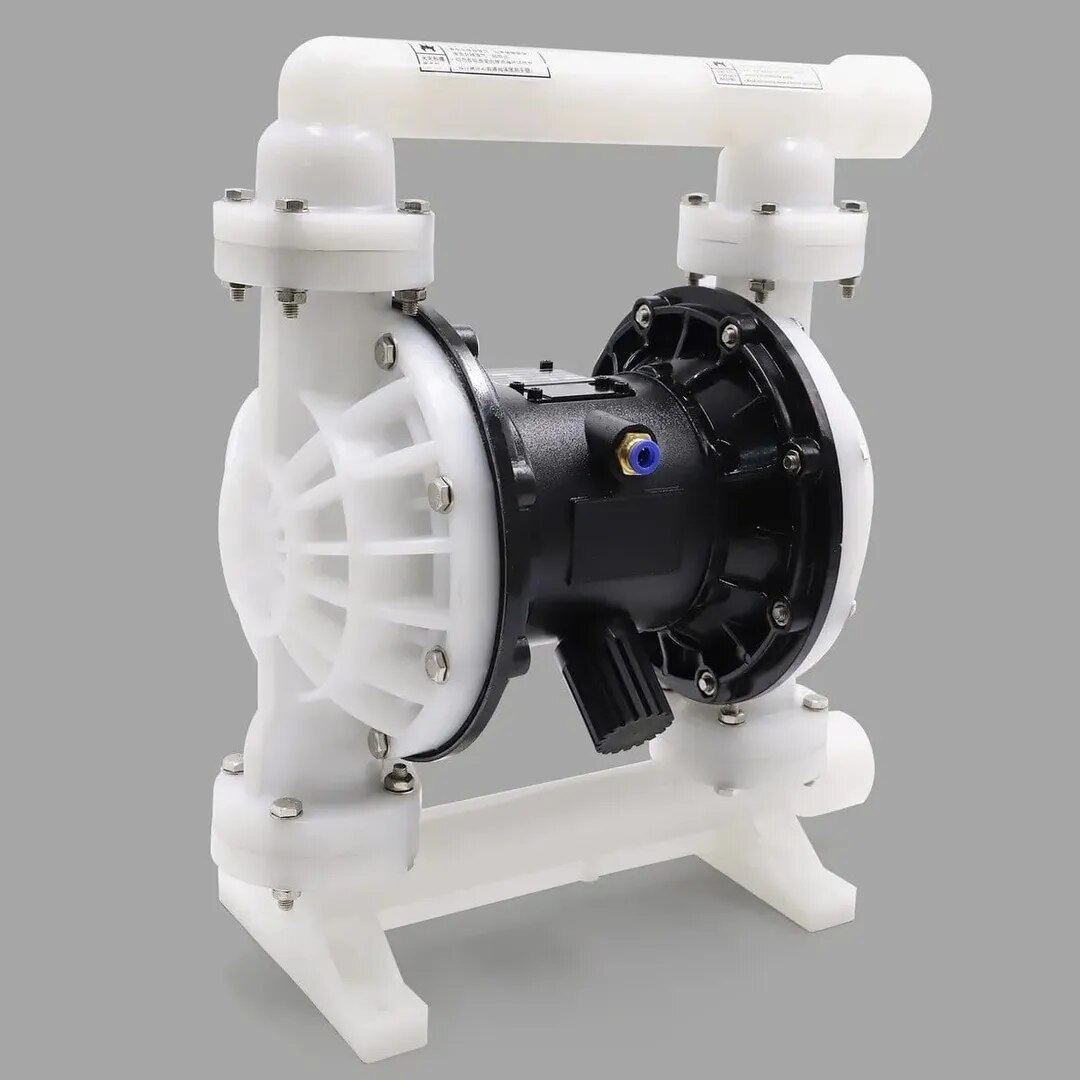

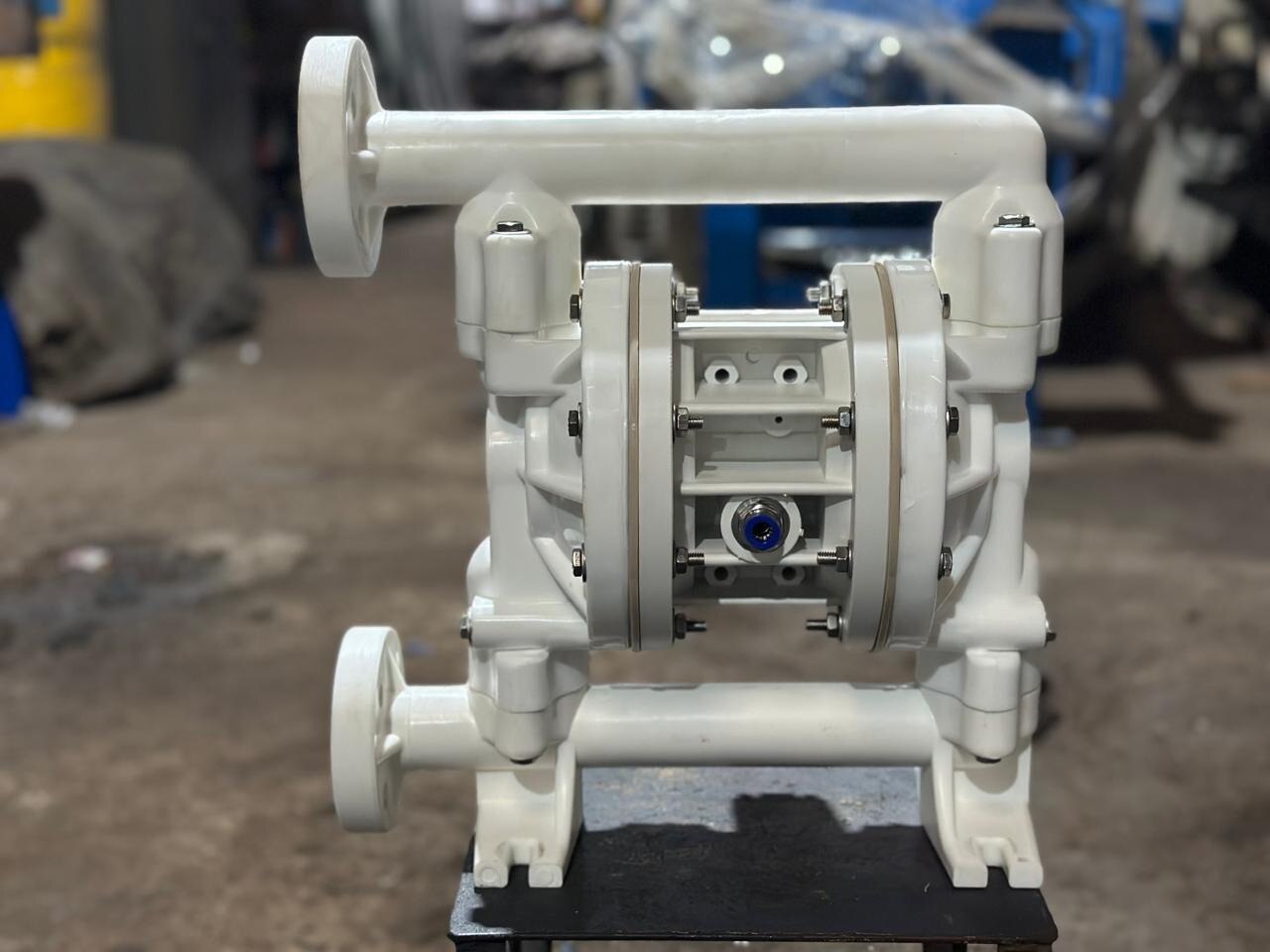

Ganesh Pump & Engineers offers reliable AOD (Air-Operated Double Diaphragm) Pumps designed for efficient and safe transfer of a wide range of industrial fluids. AOD pumps operate using compressed air rather than electricity, making them suitable for applications where electrical power may be unavailable or where safe handling of flammable, corrosive, viscous or shear-sensitive fluids is required.
The robust double-diaphragm design provides dependable pumping performance, self-priming capability and the ability to run dry without significant damage. AOD pumps are available with different wetted materials and diaphragm configurations to meet specific chemical compatibility and application requirements.
These pumps are widely used in chemical processing, pharmaceutical, paint and coating, food processing, wastewater treatment, printing, ceramics, mining and general industrial applications.
Key Features
Air-operated and electricity-free pumping
Self-priming capability
Can handle viscous and abrasive fluids
Suitable for corrosive and aggressive chemicals
Dry-run capable
Variable flow controlled through air supply
Robust and compact construction
Easy maintenance and servicing
Suitable for intermittent and continuous operation
Excellent solution for hazardous-area applications
Specifications
| Pump Type | Air-Operated Double Diaphragm (AODD) Pump |
|---|---|
| Operating Principle | Compressed-air operated |
| Diaphragm Options | PTFE, Santoprene, NBR, EPDM and other materials |
| Wetted Materials | PP, PVDF, PTFE, Aluminium, Stainless Steel, etc., depending on model |
| Fluid Compatibility | Chemicals, solvents, slurries, viscous liquids and industrial fluids |
| Power Source | Compressed Air |
| Drive | Pneumatic |
| Flow Rate | Up to 500 LPM |
| Maximum Pressure | 7 Kg |
| Priming | Self-priming |
| Maintenance | Simple diaphragm and valve servicing |
